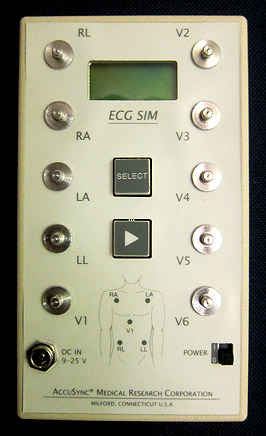

ECG SIM
The New ECG SIM, an inexpensive battery operated 3, 5, or 10 lead ECG simulator with menu driven LCD display allows you to select from 4 signals and a range of values for signal frequency and amplitude. Its compact package makes it easy to handle and can even fit in your pocket.
4 Types of Signals
1. ECG: normal ECG
2. SIN: sine wave
3. SQU: square wave
4. TRI: triangle wave
Signal Frequency
1. ECG: 30 to 270 BPM
(beats per minute)
2. SIN: 0.5 to 100Hz
3. SQU: 2 Hz
4. TRI: 2 Hz
Amplitude Range: 0.25 to 2.00 mV (in .25 increments)
Alkaline 9 volt battery
Rechargable NiMH 9.6V Battery (Optional)
