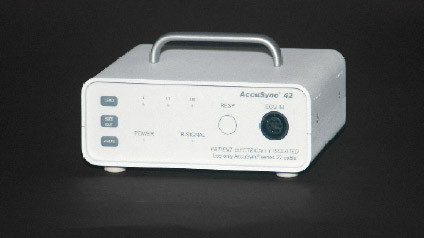

ECG Isolation Amplifier
PATIENT LEAKAGE CURRENT: less than 10 μAwith 230 V~, 60 Hz applied to the patient leads.
Patient related circuitry is isolated from ground by more than 4000 V, 5500 V peak.
DEFIBRILLATOR PROTECTION: 5000 V, 10 ms duration.
COMMON MODE REJECTION RATIO: 90db with 51 kOhm imbalance.
INPUT IMPEDANCE: 100MOhm |
|
PATIENT CABLE: 3 lead system, RA, LA and LL with 6 pin connector.
INPUT BIAS CURRENT: 50 nADC
ELECTRODEOFFSET POTENTIAL: +/- 0.5V
SENSITIVITY: 100 μV peak
OUTPUTS
1) The R trigger is a 5V TTL/CMOS (or 12V) compatible square wave for the computer trigger; independent of ECG signal polarity. The output can deliver 35 mA of current or
drive up to 150 feet long RGU 174/U cable. R trigger is compatible with all computers including Adac, DEC, Elscint, GE, Hitachi, MDS, Picker (Marconi), Sopha, Technicare,
Toshiba, Siemens, SMV, and Digirad. Designed for SPECT, PET, CT, Ultrasound, and multiple modality imaging systems.
2) RS232 interface available to transmit and receive information via an IBM or
compatible computer. In transmit mode, the interface will send the ECG data to the
computer while in receiver mode the computer will control the parameters of the
instrument.
3) ECG Output: Variable gain analog ECG signal up to x2000.
DIMENSIONS: 3.058"Hx7.188"W x6.375"D
CONSTRUCTION: Aluminum
POWER: 100-240 V~ (universal auto-switching), 60/50 Hz, 6 W
REGULATORY QUALIFICATION: CAN/USA certified to UL 2601-1 and CSA601.1 by TUV
Rheinland (NRTL), FDA 510(k). Manufacturer
maintains a full quality assurance system which is ISO9001 / ISO13485, and compliant with US FDA QSR. |
